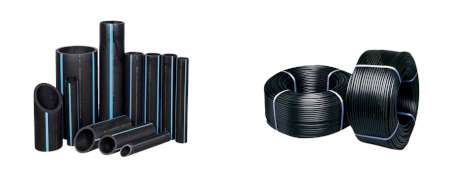

HDPE-100 BORU AĞIRLIK TABLOSU - TS EN 12201-21

SDR	SDR 11		SDR 17		SDR 26		SDR 41		SDR 33		SDR 21		SDR 13.6		SDR 9		SDR 7.4		SDR 6
PE100	PN16		PN10		PN6		PN4		PN5		PN8		PN12,5		PN20		PN25		PN32
DN (mm)	KALINLIK	Kg/m	KALINLIK	Kg/m	KALINLIK	Kg/m	KALINLIK	Kg/m	KALINLIK	Kg/m	KALINLIK	Kg/m	KALINLIK	Kg/m	KALINLIK	Kg/m	KALINLIK	Kg/m	KALINLIK	Kg/m
20	2	0.12	1.18	0.07									1.47	0.09	2.3	0.13	3	0.17	3.4	0.18
25	2.3	0.17	2	0.11									2	0.15	3	0.22	3.5	0.25	4.2	0.29
32	3	0.29	2	0.2									2.4	0.23	3.6	0.34	4.4	0.4	5.4	0.47
40	3.7	0.44	2.4	0.3									3	0.36	4.5	0.52	5.5	0.62	6.7	0.73
50	4.6	0.69	3	0.46	2	0.32					2.4	0.38	3.7	0.56	5.6	0.82	6.9	0.98	8.3	1.14
63	5.8	1.09	3.8	0.74	2.5	0.5			2	0.37	3	0.59	4.7	0.9	7.1	1.3	8.6	1.54	10.5	1.81
75	6.8	1.48	4.5	1.01	2.9	0.67			2.3	0.53	3.6	0.82	5.6	1.24	8.4	1.79	10.3	2.13	12.5	2.5
90	8.2	2.14	5.4	1.46	3.5	0.97	2.3	0.62	2.8	0.76	4.3	1.18	6.7	1.78	10.1	2.58	12.3	3.05	15	3.59
110	10	3.19	6.6	2.18	4.2	1.42	2.7	0.92	3.4	1.14	5.3	1.77	8.1	2.64	12.3	3.84	15.1	4.58	18.3	5.37
125	11.4	4.14	7.4	2.78	4.8	1.84	3.1	1.19	3.9	1.47	6	2.28	9.2	3.4	14	4.96	17.1	5.89	20.8	6.93
140	12.7	5.16	8.3	3.49	5.4	2.32	3.5	1.49	4.3	1.84	6.7	2.85	10.3	4.27	15.7	6.23	19.2	7.41	23.3	8.69
160	14.6	6.78	9.5	4.57	6.2	3.05	4	1.95	4.9	2.4	7.7	3.75	11.8	5.59	17.9	8.12	21.9	9.66	26.6	11.36
180	16.4	8.57	10.7	5.79	6.9	3.81	4.4	2.46	5.5	3.04	8.6	4.71	13.3	7.08	20.1	10.26	24.6	12.21	29.9	14.37
200	18.2	10.57	11.9	7.15	7.7	4.73	4.9	3.04	6.2	3.75	9.6	5.84	14.7	8.7	22.4	12.71	27.4	15.1	33.2	17.74
225	20.5	13.39	13.4	9.06	8.6	5.94	5.5	3.85	6.9	4.75	10.8	7.39	16.6	11.05	25.2	16.08	30.8	19.1	37.4	22.46
250	22.7	16.48	14.8	11.12	9.6	7.37	6.2	4.75	7.7	5.87	11.9	9.05	18.4	13.61	27.9	19.79	34.2	23.57	41.5	27.72
280	25.4	20.65	16.6	13.96	10.7	9.2	6.9	5.96	8.6	7.36	13.4	11.41	20.6	17.07	31.3	24.86	38.3	29.57	46.5	34.78
315	28.6	26.16	18.7	17.7	12.1	11.71	7.7	7.54	9.7	9.31	15	14.37	23.2	21.62	35.2	31.46	43.1	37.43	52.3	44.02
355	32.2	33.2	21.1	22.5	13.6	14.83	8.7	9.58	10.9	11.83	16.9	18.25	26.1	27.42	39.7	39.98	48.5	47.48	59	55.9
400	36.3	42.17	23.7	28.48	15.3	18.8	9.8	12.16	12.3	15.02	19.1	23.24	29.4	34.8	44.7	50.72	54.7	60.33	66.7	70.97
450	40.9	53.44	26.7	36.1	17.2	23.78	11	15.39	13.8	19	21.5	29.42	33.1	44.07	50.3	64.21	61.5	76.31
500	45.4	65.92	29.7	44.61	19.1	29.34	12.3	19	15.3	23.46	23.9	36.34	36.8	54.44	55.8	79.16
560	50.8	82.62	33.2	55.86	21.4	36.81	13.7	23.83	17.2	29.43	26.7	45.48	41.2	68.27	62.5	99.31
630	57.2	104.6	37.4	70.79	24.1	46.64	15.4	30.16	19.3	37.25	30	57.49	46.3	86.31	70.3	125.7
710	64.5	133	42.1	89.81	27.2	59.32	17.4	38.31	21.8	47.31	33.9	73.2	52.2	109.7	79.3	159.7
800	72.6	168.7	47.4	113.9	30.6	75.19	19.6	48.64	24.5	60.06	38.1	92.71	58.8	139.2	89.3	202.7
