İnegal Te Enjeksiyon Ek Parçası PN6/PN10/PN16 - Konfeksiyon Ek Parçası

PN6/SDR-27.6 İnegal Te Enjeksiyon Ek Parçası PE100.

PN6/SDR-27.6 İnegal Te Enjeksiyon Ek Parçası PE100 DIN 16963

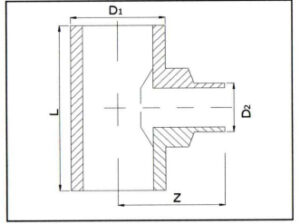

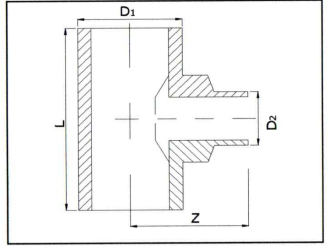

PE100 İnegal Te – Enjeksiyon Ek Parçası hdpe inegal te imalat ölçüsü hdpe kollektör sistemi
D1 (mm)	D2 (mm)	L (mm)	Z (mm)	KOD NO	AĞIRLIK (Kg)
90	50	265	45	1.15.006.0090.0050	0,41
90	63	265	45	1.15.006.0090.0063	0,39
110	50	287	55	1.15.006.0110.0050	0,58
110	63	287	55	1.15.006.0110.0063	0,56
110	75	287	55	1.15.006.0110.0075	0,55
110	90	297	55	1.15.006.0110.0090	0,59
125	50	292	62,50	1.15.006.0125.0050	0,70
125	63	292	62,50	1.15.006.0125.0063	0,69
125	75	302	62,50	1.15.006.0125.0075	0,76
125	90	322	62,50	1.15.006.0125.0090	0,93
140	50	301	70	1.15.006.0140.0050	0,90
140	63	301	70	1.15.006.0140.0063	0,89
140	90	321	70	1.15.006.0140.0090	1,05
140	110	336	70	1.15.006.0140.0110	1,20
160	50	300	80	1.15.006.0160.0050	1,01
160	63	300	80	1.15.006.0160.0063	0,99
160	75	315	80	1.15.006.0160.0075	1,11
160	90	315	80	1.15.006.0160.0090	1,07
160	110	365	80	1.15.006.0160.0110	1,67
160	125	365	80	1.15.006.0160.0125	1,62
180	50	342	90	1.15.006.0180.0050	1,46
180	63	342	90	1.15.006.0180.0063	1,44
180	90	342	90	1.15.006.0180.0090	1,40
180	110	165	90	1.15.006.0180.0110	1,03
180	125	392	90	1.15.006.0180.0125	1,96
180	140	392	90	1.15.006.0180.0140	2,46
200	50	355	100	1.15.006.0200.0050	1,81
200	63	355	100	1.15.006.0200.0063	1,80
200	90	390	100	1.15.006.0200.0090	2,20
200	110	390	100	1.15.006.0200.0110	2,16
200	125	390	100	1.15.006.0200.0125	2,10
200	140	424	100	1.15.006.0200.0140	2,64
200	160	465	100	1.15.006.0200.0160	3,60
225	63	356	112,5	1.15.006.0225.0063	2,14
225	90	386	112,50	1.15.006.0225.0090	2,44
225	110	431	112,50	1.15.006.0225.0110	3,12
225	125	431	112,50	1.15.006.0225.0125	3,09
225	140	431	112,50	1.15.006.0225.0140	3,01
225	160	481	112,50	1.15.006.0225.0160	4,15
225	180	481	112,50	1.15.006.0225.0180	4,04
225	200		112,50	1.15.006.0225.0200	5,49
250	50	337	125	1.15.006.0250.0050	2,54
250	63	337	125	1.15.006.0250.0063	2,52
250	90	391	125	1.15.006.0250.0090	3,29
250	110	391	125	1.15.006.0250.0110	3,27
250	125	391	125	1.15.006.0250.0125	3,23
250	140	412	125	1.15.006.0250.0140	3,58
250	160	412	125	1.15.006.0250.0160	3,51
250	180	454	125	1.15.006.0250.0180	4,48
250	200		125	1.15.006.0250.0200	5,81
280	63	335	140	1.15.006.0280.0063	3,04
280	90	400	140	1.15.006.0280.0090	4,04
280	110	400	140	1.15.006.0280.0110	4,04
280	140	460	140	1.15.006.0280.0140	5,34
280	160	460	140	1.15.006.0280.0160	5,34
280	180	460	140	1.15.006.0280.0180	2,25
280	200	503	140	1.15.006.0280.0200	7,63
280	225	503	140	1.15.006.0280.0225	6,57
315	63	411	157,5	1.15.006.0315.0063	5,97
315	90	411	157,5	1.15.006.0315.0090	5,07
315	110	411	157,5	1.15.006.0315.0110	5,04
315	125	411	157,5	1.15.006.0315.0125	5,00
315	140	431	157,5	1.15.006.0315.0140	5,40
315	160	471	157,5	1.15.006.0315.0160	6,45
315	180	471	157,50	1.15.006.0315.0180	6,36
315	200	511	157,50	1.15.006.0315.0200	7,89
315	225	511	157,50	1.15.006.0315.0225	7,35
355	63	421	177,50	1.15.006.0355.0063	6,44
355	90	421	177,50	1.15.006.0355.0090	6,43
355	110	421	177,50	1.15.006.0355.0110	6,41
355	125	421	177,50	1.15.006.0355.0125	6,36
355	140	481	177,50	1.15.006.0355.0140	7,96
355	160	481	177,50	1.15.006.0355.0160	7,97
355	180	481	177,50	1.15.006.0355.0180	7,89
355	200	506	177,50	1.15.006.0355.0200	8,63
355	225	521	177,50	1.15.006.0355.0225	8,97
355	250	320	177,50	1.15.006.0355.0250	6,25
355	280		177,50	1.15.006.0355.0280	13,38
400	63	437	200	1.15.006.0400.0063	8,16
400	90	437	200	1.15.006.0400.0090	8,13
400	110	437	200	1.15.006.0400.0110	8,10
400	125	467	200	1.15.006.0400.0125	8,96
400	140	467	200	1.15.006.0400.0140	8,91
400	160	514	200	1.15.006.0400.0160	10,31
400	180	514	200	1.15.006.0400.0180	10,26
400	200	552	200	1.15.006.0400.0200	11,28
400	225	552	200	1.15.006.0400.0225	11,41
400	250	380	200	1.15.006.0400.0250	9,71
400	280	622	200	1.15.006.0400.0280	14,47
450	63	455	225	1.15.006.0450.0063	10,58
450	90	455	225	1.15.006.0450.0090	10,57
450	110	455	225	1.15.006.0450.0110	10,54
450	125	490	225	1.15.006.0450.0125	11,64
450	140	490	225	1.15.006.0450.0140	11,58
450	160	530	225	1.15.006.0450.0160	13,04
450	180	530	225	1.15.006.0450.0180	12,96
450	225	635	225	1.15.006.0450.0225	17,65
450	250	635	225	1.15.006.0450.0250	17,55
450	280	635	225	1.15.006.0450.0280	17,33
450	315	710	225	1.15.006.0450.0315	22,13
450	355	710	225	1.15.006.0450.0355	21,51
500	63	430	250	1.15.006.0500.0063	11,98
500	90	490	250	1.15.006.0500.0090	14,02
500	110	490	250	1.15.006.0500.0110	14,00
500	125	490	250	1.15.006.0500.0125	13,97
500	140	505	250	1.15.006.0500.0140	14,48
500	160	550	250	1.15.006.0500.0160	16,32
500	180	550	250	1.15.006.0500.0180	16,26
500	200	600	250	1.15.006.0500.0200	18,53
500	225	600	250	1.15.006.0500.0225	18,37
500	250	600	250	1.15.006.0500.0250	20,77
500	280	650	250	1.15.006.0500.0280	20,78
500	315	705	250	1.15.006.0500.0315	24,08
500	355	800	250	1.15.006.0500.0355	32,42
500	400	800	250	1.15.006.0500.0400	31,43
560	50	435	280	1.15.006.0560.0050	15,17
560	63	435	280	1.15.006.0560.0063	15,15
560	90	500	280	1.15.006.0560.0090	17,81
560	110	500	280	1.15.006.0560.0110	17,79
560	125	520	280	1.15.006.0560.0125	18,65
560	140	520	280	1.15.006.0560.0140	18,61
560	160	562	280	1.15.006.0560.0160	20,62
560	180	562	280	1.15.006.0560.0180	20,56
560	200	585	280	1.15.006.0560.0200	21,66
560	225	720	280	1.15.006.0560.0225	27,45
560	250	720	280	1.15.006.0560.0250	27,27
560	280	795	280	1.15.006.0560.0280	32,41
560	315	795	280	1.15.006.0560.0315	31,98
560	355	840	280	1.15.006.0560.0355	35,48
560	400	810	280	1.15.006.0560.0400	36,83
560	450	860	280	1.15.006.0560.0450	42,19
630	63	495	315	1.15.006.0630.0063	22,04
630	90	495	315	1.15.006.0630.090	22,01
630	110	510	315	1.15.006.0630.0110	22,77
630	125	510	315	1.15.006.0630.0125	22,73
630	140	550	315	1.15.006.0630.0140	24,88
630	160	550	315	1.15.006.0630.0160	24,87
630	180	620	315	1.15.006.0630.0180	29,04
630	200	620	315	1.15.006.0630.0200	28,99
630	225	620	315	1.15.006.0630.0225	28,85
630	250	650	315	1.15.006.0630.0250	30,73
630	280	725	315	1.15.006.0630.0280	36,40
630	315	725	315	1.15.006.0630.0315	36,00
630	355	770	315	1.15.006.0630.0355	39,84
630	400	870	315	1.15.006.0630.0400	50,38
630	450	870	315	1.15.006.0630.0450	49,35
630	500	870	315	1.15.006.0630.0500	46,64
710	90	520	355	1.15.006.0710.0090	29,36
710	110	520	355	1.15.006.0710.0110	29,33
710	125	520	355	1.15.006.0710.0125	29,30
710	140	580	355	1.15.006.0710.0140	33,29
710	160	580	355	1.15.006.0710.0160	33,29
710	180	580	355	1.15.006.0710.0180	33,24
710	200	605	355	1.15.006.0710.0200	34,95
710	225	660	355	1.15.006.0710.0225	39,03
710	250	660	355	1.15.006.0710.0250	38,91
710	280	780	355	1.15.006.0710.0280	49,59
710	315	780	355	1.15.006.0710.0315	51,89
710	355	780	355	1.15.006.0710.0355	52,07
710	400	880	355	1.15.006.0710.0400	60,48
710	450	880	355	1.15.006.0710.0450	59,96
710	500	940	355	1.15.006.0710.0500	67,49
800	90	535	400	1.15.006.0800.0090	38,23
800	110	535	400	1.15.006.0800.0110	38,21
800	125	535	400	1.15.006.0800.0125	38,17
800	140	575	400	1.15.006.0800.0140	41,38
800	160	595	400	1.15.006.0800.0160	43,06
800	180	655	400	1.15.006.0800.0180	47,23
800	200	645	400	1.15.006.0800.0200	47,33
800	225	645	400	1.15.006.0800.0225	47,19
800	250	710	400	1.15.006.0800.0250	53,25
800	280	710	400	1.15.006.0800.0280	53,18
800	315	795	400	1.15.006.0800.0315	61,99
800	355	795	400	1.15.006.0800.0355	61,89
800	400	895	400	1.15.006.0800.0400	74,21
800	450	895	400	1.15.006.0800.0450	73,82
800	500	955	400	1.15.006.0800.0500	81,91
800	560	1025	400	1.15.006.0800.0560	93,28

PN10/SDR-17 İnegal Te Enjeksiyon Ek Parçası PE100.

PN10/SDR-17 İnegal Te Enjeksiyon Ek Parçası PE100 DIN 16963
PE100 İnegal Te – Enjeksiyon Ek Parçası hdpe inegal te imalat ölçüsü hdpe kollektör sistemi
D1 (mm)	D2 (mm)	L (mm)	Z (mm)	KOD NO	AĞIRLIK (Kg)
90	50	265	45	1.15.010.0090.0050	0,57
90	63	265	45	1.15.010.0090.0063	0,58
110	50	287	55	1.15.010.0110.0050	0,78
110	63	287	55	1.15.010.0110.0063	0,84
110	75	287	55	1.15.010.0110.0075	0,83
110	90	297	55	1.15.010.0110.0090	0,92
125	50	292	62,50	1.15.010.0125.0050	1,01
125	63	292	62,50	1.15.010.0125.0063	1,02
125	75	302	62,50	1.15.010.0125.0075	1,11
125	90	322	62,50	1.15.010.0125.0090	1,34
140	50	301	70	1.15.010.0140.0050	1,30
140	63	301	70	1.15.010.0140.0063	1,31
140	90	321	70	1.15.010.0140.0090	1,55
140	110	336	70	1.15.010.0140.0110	1,77
160	50	300	80	1.15.010.0160.0050	1,53
160	63	300	80	1.15.010.0160.0063	1,53
160	75	315	80	1.15.010.0160.0075	1,69
160	90	315	80	1.15.010.0160.0090	1,69
160	110	365	80	1.15.010.0160.0110	2,43
160	125	365	80	1.15.010.0160.0125	2,41
180	50	342	90	1.15.010.0180.0050	2,22
180	63	342	90	1.15.010.0180.0063	2,22
180	90	342	90	1.15.010.0180.0090	2,22
180	110	165	90	1.15.010.0180.0110	1,53
180	125	392	90	1.15.010.0180.0125	2,98
180	140	392	90	1.15.010.0180.0140	3,30
200	50	355	100	1.15.010.0200.0050	2,76
200	63	355	100	1.15.010.0200.0063	2,77
200	90	390	100	1.15.010.0200.0090	3,31
200	110	390	100	1.15.010.0200.0110	3,33
200	125	390	100	1.15.010.0200.0125	3,30
200	140	424	100	1.15.010.0200.0140	3,96
200	160	465	100	1.15.010.0200.0160	5,15
225	63	356	112,5	1.15.010.0225.0063	3,36
225	90	386	112,50	1.15.010.0225.0090	3,81
225	110	431	112,50	1.15.010.0225.0110	4,70
225	125	431	112,50	1.15.010.0225.0125	4,70
225	140	431	112,50	1.15.010.0225.0140	4,67
225	160	481	112,50	1.15.010.0225.0160	6,09
225	180	481	112,50	1.15.010.0225.0180	6,08
225	200		112,50	1.15.010.0225.0200	7,09
250	50	337	125	1.15.010.0250.0050	3,93
250	63	337	125	1.15.010.0250.0063	3,93
250	90	391	125	1.15.010.0250.0090	4,96
250	110	391	125	1.15.010.0250.0110	5,00
250	125	391	125	1.15.010.0250.0125	4,99
250	140	412	125	1.15.010.0250.0140	5,47
250	160	412	125	1.15.010.0250.0160	5,52
250	180	454	125	1.15.010.0250.0180	6,77
250	200		125	1.15.010.0250.0200	7,65
280	63	335	140	1.15.010.0280.0063	4,75
280	90	400	140	1.15.010.0280.0090	17,31
280	110	400	140	1.15.010.0280.0110	6,09
280	140	460	140	1.15.010.0280.0140	7,91
280	160	460	140	1.15.010.0280.0160	8,03
280	180	460	140	1.15.010.0280.0180	8,04
280	200	503	140	1.15.010.0280.0200	10,73
280	225	503	140	1.15.010.0280.0225	9,81
315	63	411	157,5	1.15.010.0315.0063	8,70
315	90	411	157,5	1.15.010.0315.0090	7,84
315	110	411	157,5	1.15.010.0315.0110	7,88
315	125	411	157,5	1.15.010.0315.0125	7,87
315	140	431	157,5	1.15.010.0315.0140	8,44
315	160	471	157,5	1.15.010.0315.0160	9,88
315	180	471	157,50	1.15.010.0315.0180	9,88
315	200	511	157,50	1.15.010.0315.0200	11,78
315	225	511	157,50	1.15.010.0315.0225	11,38
355	63	421	177,50	1.15.010.0355.0063	9,97
355	90	421	177,50	1.15.010.0355.0090	10,00
355	110	421	177,50	1.15.010.0355.0110	10,04
355	125	421	177,50	1.15.010.0355.0125	10,03
355	140	481	177,50	1.15.010.0355.0140	12,17
355	160	481	177,50	1.15.010.0355.0160	12,29
355	180	481	177,50	1.15.010.0355.0180	12,32
355	200	506	177,50	1.15.010.0355.0200	13,36
355	225	521	177,50	1.15.010.0355.0225	13,97
355	250	320	177,50	1.15.010.0355.0250	9,20
355	280		177,50	1.15.010.0355.0280	18,03
400	63	437	200	1.15.010.0400.0063	12,24
400	90	437	200	1.15.010.0400.0090	12,68
400	110	437	200	1.15.010.0400.0110	12,82
400	125	467	200	1.15.010.0400.0125	14,03
400	140	467	200	1.15.010.0400.0140	14,02
400	160	514	200	1.15.010.0400.0160	16,03
400	180	514	200	1.15.010.0400.0180	16,09
400	200	552	200	1.15.010.0400.0200	17,60
400	225	552	200	1.15.010.0400.0225	17,88
400	250	380	200	1.15.010.0400.0250	13,99
400	280	622	200	1.15.010.0400.0280	22,17
450	63	455	225	1.15.010.0450.0063	16,65
450	90	455	225	1.15.010.0450.0090	16,60
450	110	455	225	1.15.010.0450.0110	16,74
450	125	490	225	1.15.010.0450.0125	18,28
450	140	490	225	1.15.010.0450.0140	18,34
450	160	530	225	1.15.010.0450.0160	20,44
450	180	530	225	1.15.010.0450.0180	20,47
450	225	635	225	1.15.010.0450.0225	26,41
450	250	635	225	1.15.010.0450.0250	26,85
450	280	635	225	1.15.010.0450.0280	26,97
450	315	710	225	1.15.010.0450.0315	33,10
450	355	710	225	1.15.010.0450.0355	33,08
500	63	430	250	1.15.010.0500.0063	19,08
500	90	490	250	1.15.010.0500.0090	22,20
500	110	490	250	1.15.010.0500.0110	22,24
500	125	490	250	1.15.010.0500.0125	22,24
500	140	505	250	1.15.010.0500.0140	23,05
500	160	550	250	1.15.010.0500.0160	25,75
500	180	550	250	1.15.010.0500.0180	25,79
500	200	600	250	1.15.010.0500.0200	28,98
500	225	600	250	1.15.010.0500.0225	28,96
500	250	600	250	1.15.010.0500.0250	30,68
500	280	650	250	1.15.010.0500.0280	32,69
500	315	705	250	1.15.010.0500.0315	37,23
500	355	800	250	1.15.010.0500.0355	47,75
500	400	800	250	1.15.010.0500.0400	47,32
560	50	435	280	1.15.010.0560.0050	24,14
560	63	435	280	1.15.010.0560.0063	24,14
560	90	500	280	1.15.010.0560.0090	28,19
560	110	500	280	1.15.010.0560.0110	28,22
560	125	520	280	1.15.010.0560.0125	29,53
560	140	520	280	1.15.010.0560.0140	29,53
560	160	562	280	1.15.010.0560.0160	32,53
560	180	562	280	1.15.010.0560.0180	32,57
560	200	585	280	1.15.010.0560.0200	34,24
560	225	720	280	1.15.010.0560.0225	42,96
560	250	720	280	1.15.010.0560.0250	42,95
560	280	795	280	1.15.010.0560.0280	49,95
560	315	795	280	1.15.010.0560.0315	49,85
560	355	840	280	1.15.010.0560.0355	54,89
560	400	810	280	1.15.010.0560.0400	56,18
560	450	860	280	1.15.010.0560.0450	63,77
630	63	495	315	1.15.010.0630.0063	35,05
630	90	495	315	1.15.010.0630.090	35,07
630	110	510	315	1.15.010.0630.0110	36,28
630	125	510	315	1.15.010.0630.0125	36,28
630	140	550	315	1.15.010.0630.0140	39,52
630	160	550	315	1.15.010.0630.0160	39,63
630	180	620	315	1.15.010.0630.0180	45,74
630	200	620	315	1.15.010.0630.0200	45,78
630	225	620	315	1.15.010.0630.0225	45,78
630	250	650	315	1.15.010.0630.0250	48,62
630	280	725	315	1.15.010.0630.0280	56,57
630	315	725	315	1.15.010.0630.0315	56,51
630	355	770	315	1.15.010.0630.0355	62,14
630	400	870	315	1.15.010.0630.0400	75,85
630	450	870	315	1.15.010.0630.0450	76,02
630	500	870	315	1.15.010.0630.0500	74,23
710	90	520	355	1.15.010.0710.0090	46,70
710	110	520	355	1.15.010.0710.0110	46,73
710	125	520	355	1.15.010.0710.0125	46,73
710	140	580	355	1.15.010.0710.0140	52,57
710	160	580	355	1.15.010.0710.0160	52,87
710	180	580	355	1.15.010.0710.0180	52,93
710	200	605	355	1.15.010.0710.0200	55,56
710	225	660	355	1.15.010.0710.0225	61,62
710	250	660	355	1.15.010.0710.0250	61,66
710	280	780	355	1.15.010.0710.0280	76,65
710	315	780	355	1.15.010.0710.0315	79,28
710	355	780	355	1.15.010.0710.0355	80,07
710	400	880	355	1.15.010.0710.0400	92,35
710	450	880	355	1.15.010.0710.0450	93,03
710	500	940	355	1.15.010.0710.0500	103,47
800	90	535	400	1.15.010.0800.0090	60,76
800	110	535	400	1.15.010.0800.0110	60,79
800	125	535	400	1.15.010.0800.0125	60,79
800	140	575	400	1.15.010.0800.0140	65,72
800	160	595	400	1.15.010.0800.0160	68,35
800	180	655	400	1.15.010.0800.0180	75,14
800	200	645	400	1.15.010.0800.0200	74,92
800	225	645	400	1.15.010.0800.0225	74,93
800	250	710	400	1.15.010.0800.0250	83,88
800	280	710	400	1.15.010.0800.0280	84,13
800	315	795	400	1.15.010.0800.0315	96,83
800	355	795	400	1.15.010.0800.0355	97,35
800	400	895	400	1.15.010.0800.0400	114,41
800	450	895	400	1.15.010.0800.0450	115,22
800	500	955	400	1.15.010.0800.0500	126,75
800	560	1025	400	1.15.010.0800.0560	142,65

PN16/SDR-11 İnegal Te Enjeksiyon Ek Parçası PE100.

PN16/SDR-11 İnegal Te Enjeksiyon Ek Parçası PE100 DIN 16963
PE100 İnegal Te – Enjeksiyon Ek Parçası hdpe inegal te imalat ölçüsü hdpe kollektör sistemi
D1 (mm)	D2 (mm)	L (mm)	Z (mm)	KOD NO	AĞIRLIK (Kg)
90	50	265	45	1.15.016.0090.0050	0,78
90	63	265	45	1.15.016.0090.0063	0,80
110	50	287	55	1.15.016.0110.0050	1,15
110	63	287	55	1.15.016.0110.0063	1,17
110	75	287	55	1.15.016.0110.0075	1,19
110	90	297	55	1.15.016.0110.0090	1,32
125	50	292	62,50	1.15.016.0125.0050	1,43
125	63	292	62,50	1.15.016.0125.0063	1,46
125	75	302	62,50	1.15.016.0125.0075	1,58
125	90	322	62,50	1.15.016.0125.0090	1,87
140	50	301	70	1.15.016.0140.0050	1,83
140	63	301	70	1.15.016.0140.0063	1,85
140	90	321	70	1.15.016.0140.0090	2,18
140	110	336	70	1.15.016.0140.0110	2,50
160	50	300	80	1.15.016.0160.0050	2,22
160	63	300	80	1.15.016.0160.0063	2,24
160	75	315	80	1.15.016.0160.0075	2,45
160	90	315	80	1.15.016.0160.0090	2,49
160	110	365	80	1.15.016.0160.0110	3,40
160	125	365	80	1.15.016.0160.0125	3,44
180	50	342	90	1.15.016.0180.0050	3,18
180	63	342	90	1.15.016.0180.0063	3,21
180	90	342	90	1.15.016.0180.0090	3,27
180	110	165	90	1.15.016.0180.0110	2,16
180	125	392	90	1.15.016.0180.0125	4,29
180	140	392	90	1.15.016.0180.0140	4,38
200	50	355	100	1.15.016.0200.0050	3,99
200	63	355	100	1.15.016.0200.0063	4,01
200	90	390	100	1.15.016.0200.0090	4,73
200	110	390	100	1.15.016.0200.0110	4,82
200	125	390	100	1.15.016.0200.0125	4,85
200	140	424	100	1.15.016.0200.0140	5,69
200	160	465	100	1.15.016.0200.0160	7,16
225	63	356	112,5	1.15.016.0225.0063	4,93
225	90	386	112,50	1.15.016.0225.0090	5,57
225	110	431	112,50	1.15.016.0225.0110	6,72
225	125	431	112,50	1.15.016.0225.0125	6,78
225	140	431	112,50	1.15.016.0225.0140	6,80
225	160	481	112,50	1.15.016.0225.0160	8,58
225	180	481	112,50	1.15.016.0225.0180	8,71
225	200		112,50	1.15.016.0225.0200	9,15
250	50	337	125	1.15.016.0250.0050	5,74
250	63	337	125	1.15.016.0250.0063	5,76
250	90	391	125	1.15.016.0250.0090	7,13
250	110	391	125	1.15.016.0250.0110	7,24
250	125	391	125	1.15.016.0250.0125	7,29
250	140	412	125	1.15.016.0250.0140	7,93
250	160	412	125	1.15.016.0250.0160	8,13
250	180	454	125	1.15.016.0250.0180	9,72
250	200		125	1.15.016.0250.0200	10,05
280	63	335	140	1.15.016.0280.0063	7,05
280	90	400	140	1.15.016.0280.0090	8,93
280	110	400	140	1.15.016.0280.0110	9,03
280	140	460	140	1.15.016.0280.0140	11,23
280	160	460	140	1.15.016.0280.0160	11,50
280	180	460	140	1.15.016.0280.0180	11,63
280	200	503	140	1.15.016.0280.0200	14,74
280	225	503	140	1.15.016.0280.0225	17,01
315	63	411	157,5	1.15.016.0315.0063	12,18
315	90	411	157,5	1.15.016.0315.0090	11,38
315	110	411	157,5	1.15.016.0315.0110	11,48
315	125	411	157,5	1.15.016.0315.0125	11,53
315	140	431	157,5	1.15.016.0315.0140	12,33
315	160	471	157,5	1.15.016.0315.0160	14,25
315	180	471	157,50	1.15.016.0315.0180	14,38
315	200	511	157,50	1.15.016.0315.0200	16,74
315	225	511	157,50	1.15.016.0315.0225	16,52
355	63	421	177,50	1.15.016.0355.0063	14,46
355	90	421	177,50	1.15.016.0355.0090	14,55
355	110	421	177,50	1.15.016.0355.0110	14,66
355	125	421	177,50	1.15.016.0355.0125	14,71
355	140	481	177,50	1.15.016.0355.0140	17,53
355	160	481	177,50	1.15.016.0355.0160	17,81
355	180	481	177,50	1.15.016.0355.0180	17,95
355	200	506	177,50	1.15.016.0355.0200	19,39
355	225	521	177,50	1.15.016.0355.0225	20,34
355	250	320	177,50	1.15.016.0355.0250	12,98
355	280		177,50	1.15.016.0355.0280	23,95
400	63	437	200	1.15.016.0400.0063	18,72
400	90	437	200	1.15.016.0400.0090	18,80
400	110	437	200	1.15.016.0400.0110	18,90
400	125	467	200	1.15.016.0400.0125	20,56
400	140	467	200	1.15.016.0400.0140	20,62
400	160	514	200	1.15.016.0400.0160	23,41
400	180	514	200	1.15.016.0400.0180	23,59
400	200	552	200	1.15.016.0400.0200	25,75
400	225	552	200	1.15.016.0400.0225	26,21
400	250	380	200	1.15.016.0400.0250	19,52
400	280	622	200	1.15.016.0400.0280	32,08
450	63	455	225	1.15.016.0450.0063	24,52
450	90	455	225	1.15.016.0450.0090	24,61
450	110	455	225	1.15.016.0450.0110	24,70
450	125	490	225	1.15.016.0450.0125	26,96
450	140	490	225	1.15.016.0450.0140	27,01
450	160	530	225	1.15.016.0450.0160	29,95
450	180	530	225	1.15.016.0450.0180	30,10
450	225	635	225	1.15.016.0450.0225	38,54
450	250	635	225	1.15.016.0450.0250	38,84
450	280	635	225	1.15.016.0450.0280	39,35
450	315	710	225	1.15.016.0450.0315	47,17
450	355	710	225	1.15.016.0450.0355	47,92
500	63	430	250	1.15.016.0500.0063	28,20
500	90	490	250	1.15.016.0500.0090	32,61
500	110	490	250	1.15.016.0500.0110	32,71
500	125	490	250	1.15.016.0500.0125	32,77
500	140	505	250	1.15.016.0500.0140	33,95
500	160	550	250	1.15.016.0500.0160	37,75
500	180	550	250	1.15.016.0500.0180	37,91
500	200	600	250	1.15.016.0500.0200	42,28
500	225	600	250	1.15.016.0500.0225	42,45
500	250	600	250	1.15.016.0500.0250	43,29
500	280	650	250	1.15.016.0500.0280	47,88
500	315	705	250	1.15.016.0500.0315	53,97
500	355	800	250	1.15.016.0500.0355	67,25
500	400	800	250	1.15.016.0500.0400	67,58
560	50	435	280	1.15.016.0560.0050	35,65
560	63	435	280	1.15.016.0560.0063	35,67
560	90	500	280	1.15.016.0560.0090	41,50
560	110	500	280	1.15.016.0560.0110	41,59
560	125	520	280	1.15.016.0560.0125	43,49
560	140	520	280	1.15.016.0560.0140	43,55
560	160	562	280	1.15.016.0560.0160	47,80
560	180	562	280	1.15.016.0560.0180	47,96
560	200	585	280	1.15.016.0560.0200	50,37
560	225	720	280	1.15.016.0560.0225	62,84
560	250	720	280	1.15.016.0560.0250	63,06
560	280	795	280	1.15.016.0560.0280	72,45
560	315	795	280	1.15.016.0560.0315	72,45
560	355	840	280	1.15.016.0560.0355	79,75
560	400	810	280	1.15.016.0560.0400	81,00
560	450	860	280	1.15.016.0560.0450	91,42
630	63	495	315	1.15.016.0630.0063	51,63
630	90	495	315	1.15.016.0630.090	51,70
630	110	510	315	1.15.016.0630.0110	53,48
630	125	510	315	1.15.016.0630.0125	53,54
630	140	550	315	1.15.016.0630.0140	58,18
630	160	550	315	1.15.016.0630.0160	58,43
630	180	620	315	1.15.016.0630.0180	67,00
630	200	620	315	1.15.016.0630.0200	67,17
630	225	620	315	1.15.016.0630.0225	67,36
630	250	650	315	1.15.016.0630.0250	71,43
630	280	725	315	1.15.016.0630.0280	82,30
630	315	725	315	1.15.016.0630.0315	82,64
630	355	770	315	1.15.016.0630.0355	90,54
630	400	870	315	1.15.016.0630.0400	108,35
630	450	870	315	1.15.016.0630.0450	110,03
630	500	870	315	1.15.016.0630.0500	109,38
710	90	520	355	1.15.016.0710.0090	68,94
710	110	520	355	1.15.016.0710.0110	69,04
710	125	520	355	1.15.016.0710.0125	69,10
710	140	580	355	1.15.016.0710.0140	77,74
710	160	580	355	1.15.016.0710.0160	78,01
710	180	580	355	1.15.016.0710.0180	78,18
710	200	605	355	1.15.016.0710.0200	82,01
710	225	660	355	1.15.016.0710.0225	90,60
710	250	660	355	1.15.016.0710.0250	90,87
710	280	780	355	1.15.016.0710.0280	111,38
710	315	780	355	1.15.016.0710.0315	114,41
710	355	780	355	1.15.016.0710.0355	115,97
710	400	880	355	1.15.016.0710.0400	133,26
710	450	880	355	1.15.016.0710.0450	135,46
710	500	940	355	1.15.016.0710.0500	149,60
800	90	535	400	1.15.016.0800.0090	89,96
800	110	535	400	1.15.016.0800.0110	90,06
800	125	535	400	1.15.016.0800.0125	90,12
800	140	575	400	1.15.016.0800.0140	97,28
800	160	595	400	1.15.016.0800.0160	101,15
800	180	655	400	1.15.016.0800.0180	111,33
800	200	645	400	1.15.016.0800.0200	110,69
800	225	645	400	1.15.016.0800.0225	110,88
800	250	710	400	1.15.016.0800.0250	123,60
800	280	710	400	1.15.016.0800.0280	124,27
800	315	795	400	1.15.016.0800.0315	142,00
800	355	795	400	1.15.016.0800.0355	143,28
800	400	895	400	1.15.016.0800.0400	166,54
800	450	895	400	1.15.016.0800.0450	168,86
800	500	955	400	1.15.016.0800.0500	184,79
800	560	1025	400	1.15.016.0800.0560	206,58

PN6 İnegal Te Enjeksiyon & Konfeksiyon

PN10 İnegal Te Enjeksiyon & Konfeksiyon

PN16 İnegal Te Enjeksiyon & Konfeksiyon
