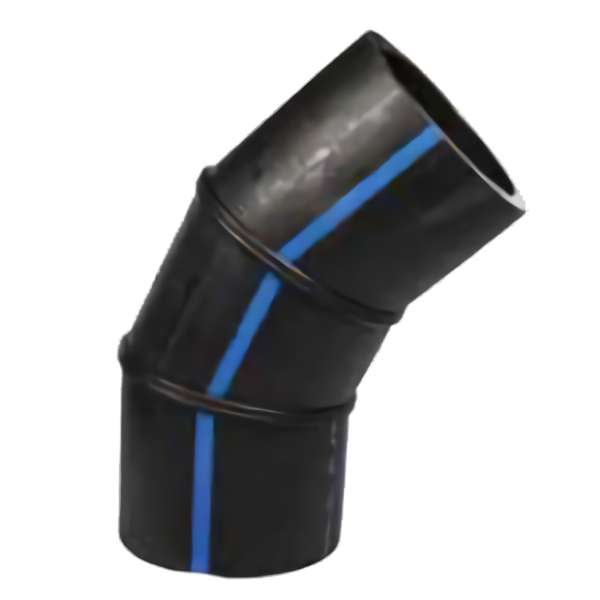

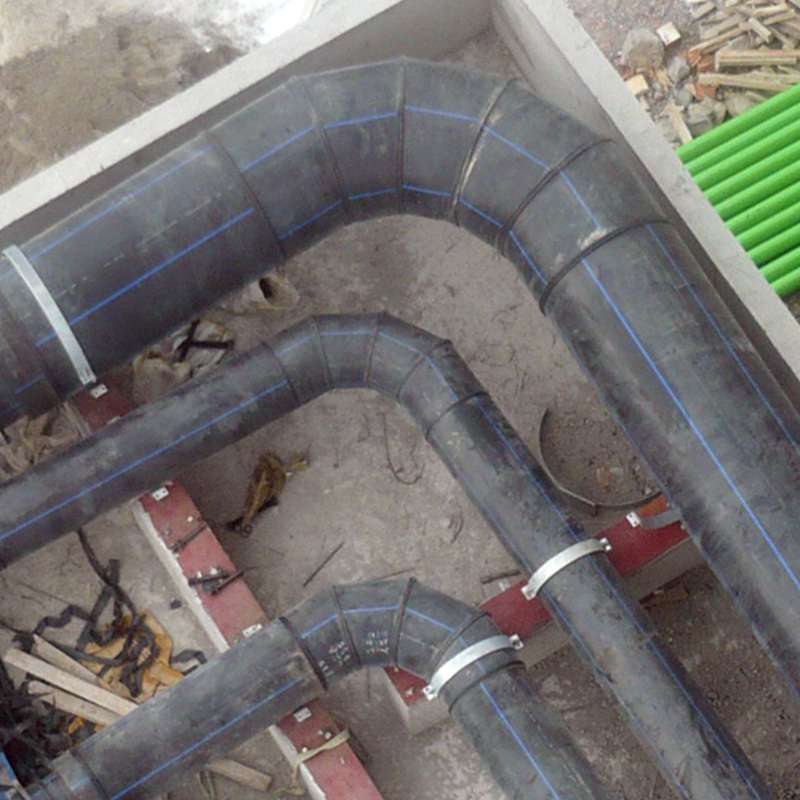

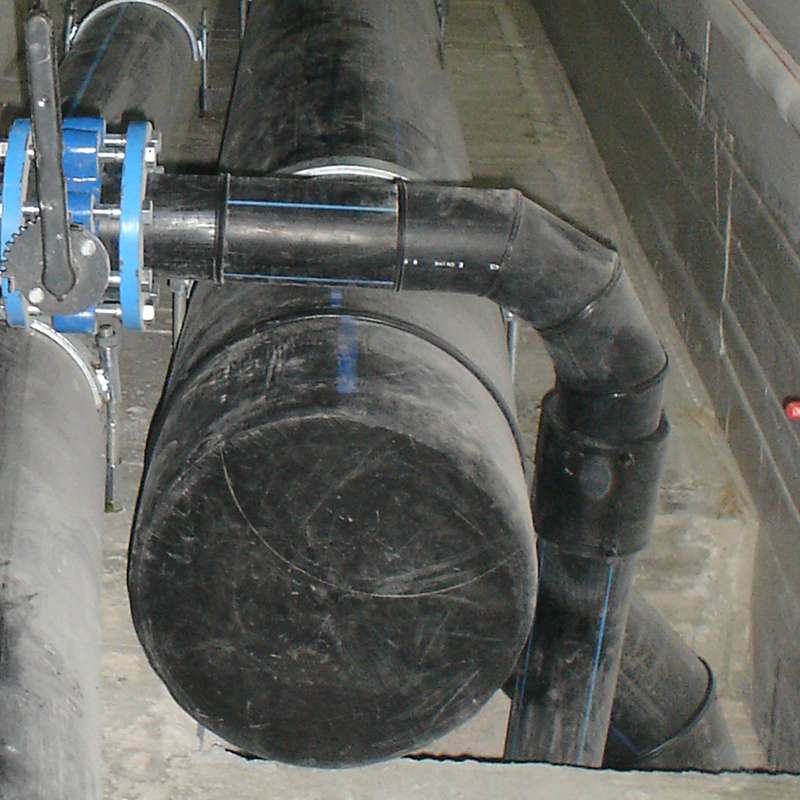

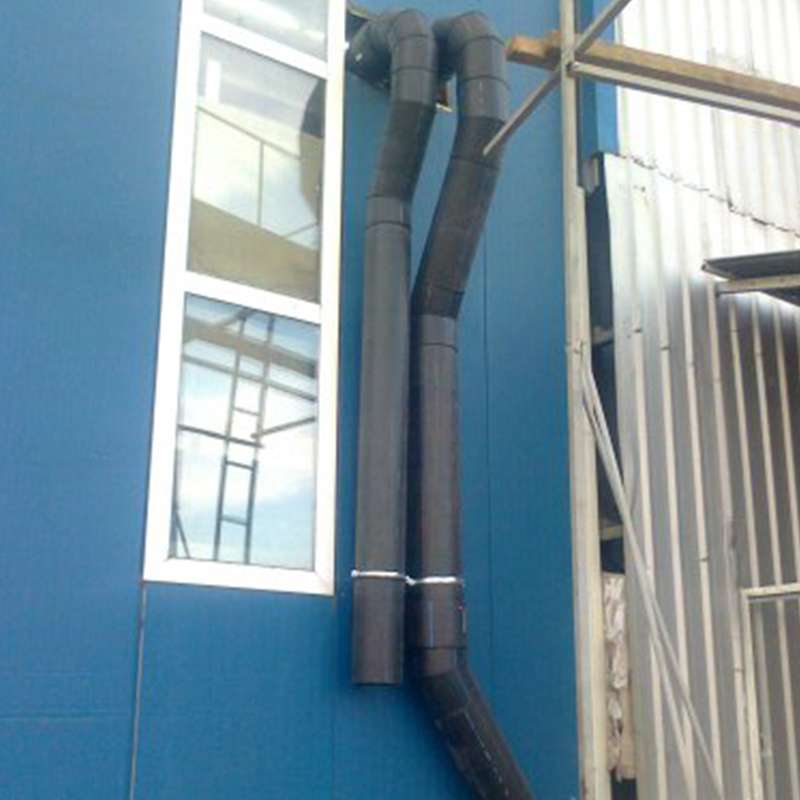

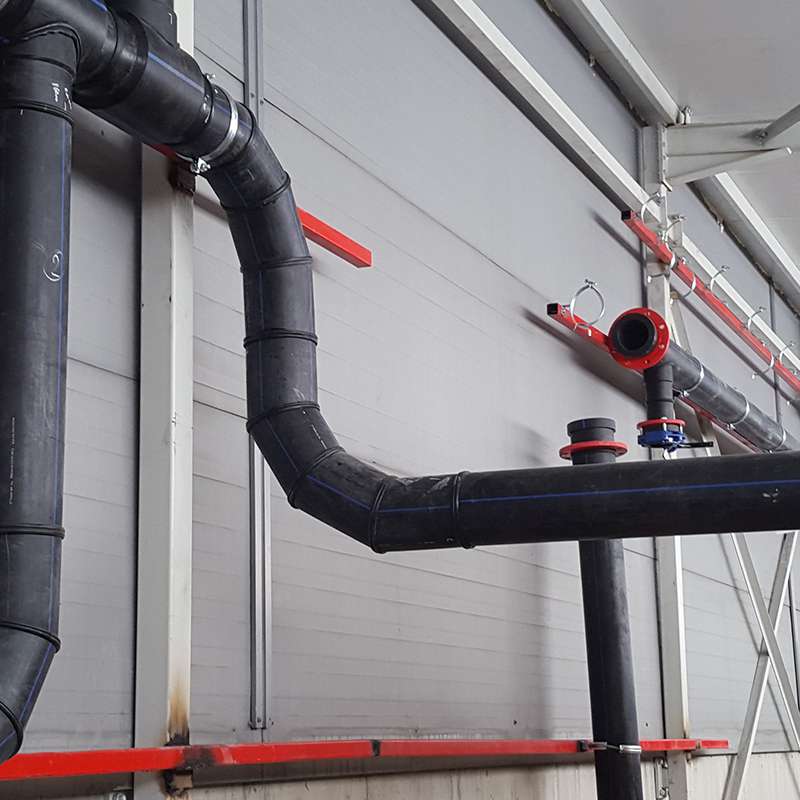

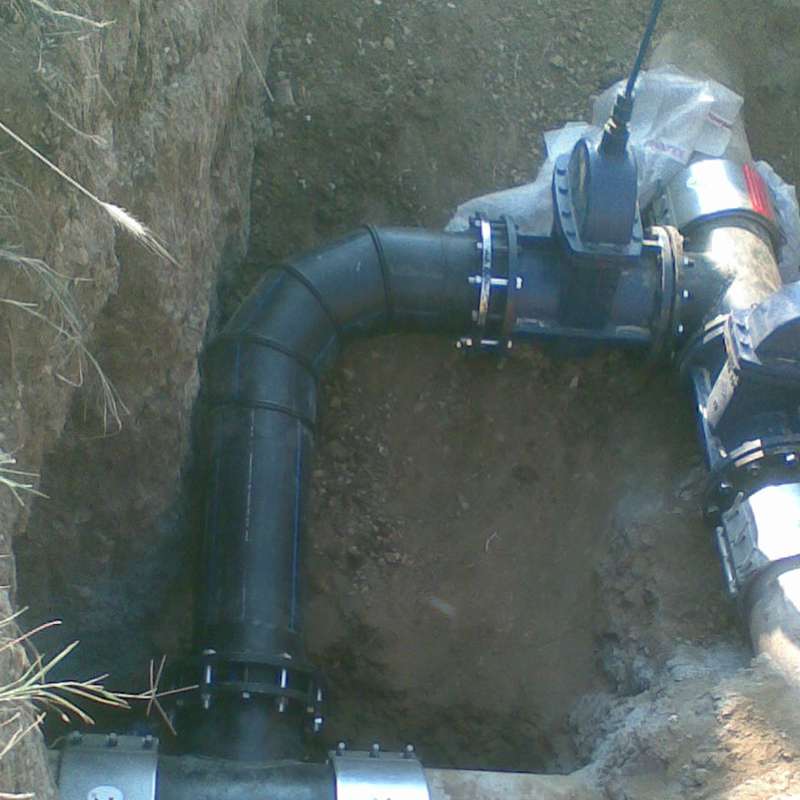

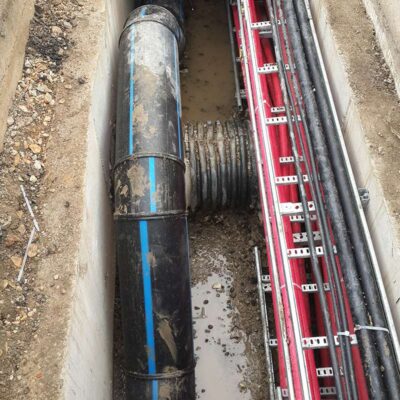

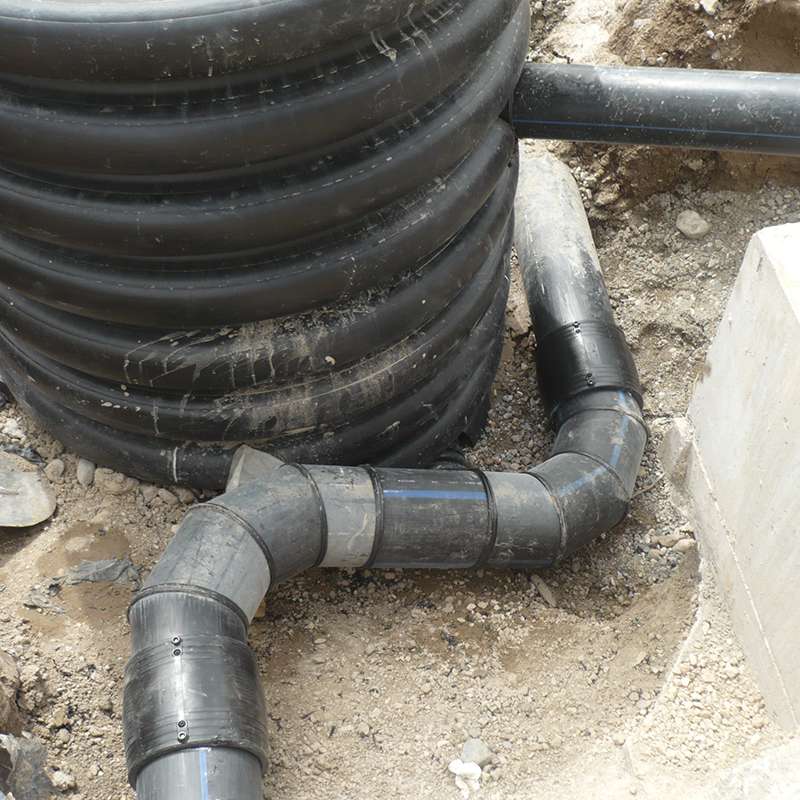

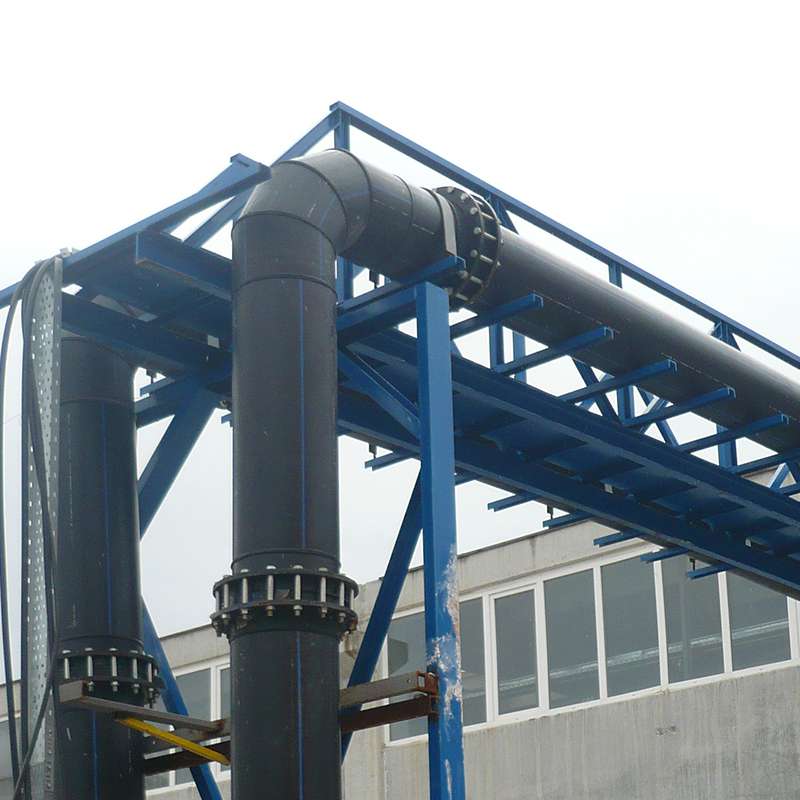

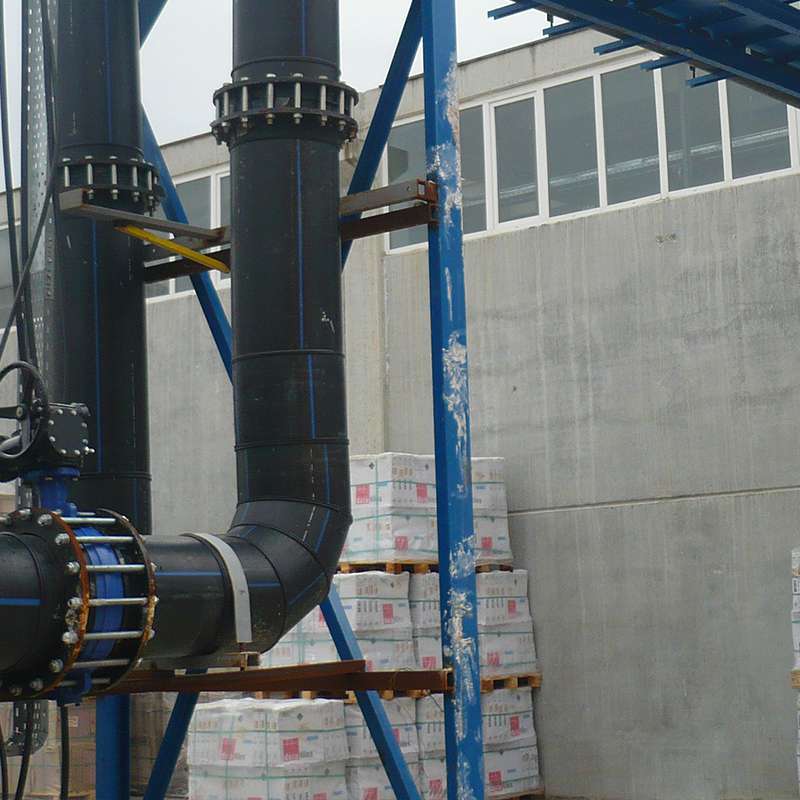

PE100 60° Dirsek DIN 16963 Konfeksiyon ek parçası.
| PE100 60° DİRSEK (KONFEKSİYON PARÇASI) DIN 16963 | |||||||||
     | |||||||||
| D (mm) | L (mm) | R (mm) | Z (mm) | PN6 | PN10 | PN16 | |||
| KOD NO | AĞIRLIK (kg) | KOD NO | AĞIRLIK (kg) | KOD NO | AĞIRLIK (kg) | ||||
| Ø90 | 95 | 135 | 149 | 1.13.006.0090.0060 | 0,26 | 1.13.010.0090.0060 | 0,41 | 1.13.016.0090.0060 | 0,60 |
| Ø110 | 100 | 165 | 165 | 1.13.006.0110.0060 | 0,42 | 1.13.010.0110.0060 | 0,68 | 1.13.016.0110.0060 | 1,00 |
| Ø125 | 105 | 188 | 180 | 1.13.006.0125.0060 | 0,59 | 1.13.010.0125.0060 | 0,94 | 1.13.016.0125.0060 | 1,40 |
| Ø140 | 105 | 210 | 189 | 1.13.006.0140.0060 | 0,78 | 1.13.010.0140.0060 | 1,24 | 1.13.016.0140.0060 | 1,83 |
| Ø160 | 130 | 240 | 205 | 1.13.006.0160.0060 | 1,10 | 1.13.010.0160.0060 | 1,76 | 1.13.016.0160.0060 | 2,61 |
| Ø180 | 125 | 270 | 232 | 1.13.006.0180.0060 | 1,57 | 1.13.010.0180.0060 | 2,52 | 1.13.016.0180.0060 | 3,73 |
| Ø200 | 130 | 300 | 250 | 1.13.006.0200.0060 | 2,10 | 1.13.010.0200.0060 | 3,34 | 1.13.016.0200.0060 | 4,94 |
| Ø225 | 140 | 338 | 271 | 1.13.006.0225.0060 | 2,88 | 1.13.010.0225.0060 | 4,59 | 1.13.016.0225.0060 | 6,79 |
| Ø250 | 140 | 375 | 289 | 1.13.006.0250.0060 | 3,78 | 1.13.010.0250.0060 | 6,00 | 1.13.016.0250.0060 | 8,89 |
| Ø280 | 150 | 420 | 317 | 1.13.006.0280.0060 | 5,19 | 1.13.010.0280.0060 | 8,25 | 1.13.016.0280.0060 | 12,20 |
| Ø315 | 170 | 473 | 361 | 1.13.006.0315.0060 | 7,44 | 1.13.010.0315.0060 | 11,92 | 1.13.016.0315.0060 | 17,62 |
| Ø355 | 200 | 533 | 413 | 1.13.006.0355.0060 | 10,86 | 1.13.010.0355.0060 | 17,33 | 1.13.016.0355.0060 | 25,57 |
| Ø400 | 220 | 600 | 459 | 1.13.006.0400.0060 | 15,29 | 1.13.010.0400.0060 | 24,38 | 1.13.016.0400.0060 | 36,10 |
| Ø450 | 300 | 675 | 568 | 1.13.006.0450.0060 | 24,07 | 1.13.010.0450.0060 | 38,48 | 1.13.016.0450.0060 | 56,98 |
| Ø500 | 300 | 750 | 599 | 1.13.006.0500.0060 | 31,22 | 1.13.010.0500.0060 | 49,98 | 1.13.016.0500.0060 | 73,86 |
| Ø560 | 350 | 840 | 685 | 1.13.006.0560.0060 | 44,86 | 1.13.010.0560.0060 | 71,63 | 1.13.016.0560.0060 | 105,94 |
| Ø630 | 350 | 945 | 727 | 1.13.006.0630.0060 | 59,96 | 1.13.010.0630.0060 | 96,00 | 1.13.016.0630.0060 | 141,91 |
| Ø710 | 350 | 1065 | 775 | 1.13.006.0710.0060 | 80,94 | 1.13.010.0710.0060 | 129,42 | 1.13.016.0710.0060 | 191,62 |
| Ø800 | 350 | 1200 | 829 | 1.13.006.0800.0060 | 109,68 | 1.13.010.0800.0060 | 174,98 | 1.13.016.0800.0060 | |
| Ø900 | 450 | 1350 | 988 | 1.13.006.0900.0060 | 166,05 | 1.13.010.0900.0060 | 265,00 | 1.13.016.0900.0060 | |
| Ø1000 | 450 | 1500 | 1048 | 1.13.006.1000.0060 | 216,74 | 1.13.010.1000.0060 | 346,54 | 1.13.016.1000.0060 | |
